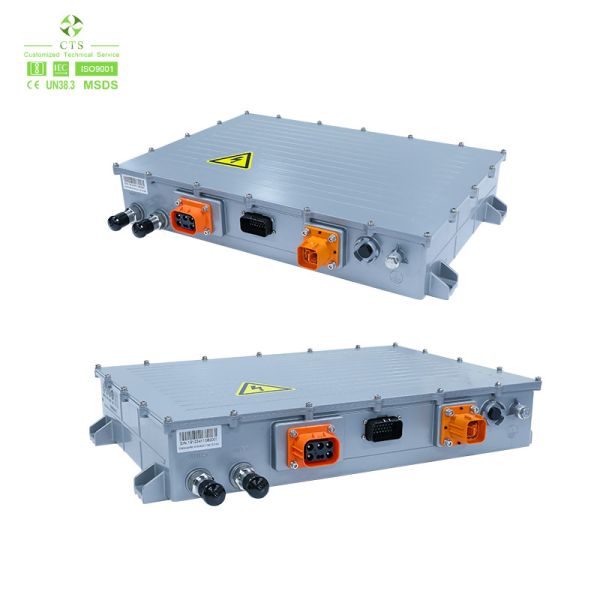

On Board Charger for Lithium Battery 48V 300V 500V 10kW 20kW High Voltage EV Charging OBC

Product Categories
Hunan CTS Technology Co,.ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

On Board Charger for Lithium Battery 48V 300V 500V 10kW 20kW High Voltage EV Charging OBC

Brand Name : CTS EV battery charger

Model Number : 20KW EV charger

Certification : MSDS/UN38.3/CE/UL

Place of Origin : Changsha ,hunan province

MOQ : 3

Price : 658~1559

Payment Terms : L/C,T/T,Western Union

Supply Ability : 9000 pcs/month

Delivery Time : 15 working days

Packaging Details : Carton case

Output power : 10KW 20KW

Input voltage range : Three-phase 152V~456V ac

Input current : 32A

Output Voltage range : 40V~850V DC

Dimensions : 580*265*155mm

Waterproof : IP67

Warranty : 2 years

Cooling system : Fan/liquid cooling

Application : EV car charger, electric vehicle, bus, truck charging

Product name : Lithium battery charger, OBC, EV charger

Contact Now

On Board Charger for Lithium Battery 48V 300V 500V 10kW 20kW High Voltage EV Charging OBC
Product Details
The 20KW on-board charger is a high-power and high-efficiency charger specially developed for new lithium-ion electric logistics vehicles, buses, construction machinery and other new energy vehicles.
It is designed and developed with modular, standardized and universal design ideas. The charger supports three-phase AC input and the DC output voltage can be adjustable.
Main Features :
1. Compliance with SAE J1772 and EN61851.
2. Fully sealed process can work reliably under the conditions of -40°C-+85°C
3. Firmware up-gradable over CAN bus.
4. Protection level IP67 Can work safely under short-term water immersion conditions
5. Heat dissipation method: air cooling / water cooling
6. DC High Voltage Interlock Loop (HVIL) protection
7. Constant power and constant current charging capable.
On Board Charger for Lithium Battery 48V 300V 500V 10kW 20kW High Voltage EV Charging OBC
The parameters of 20KW OBC
Model
Input voltage range
Output power
The output voltage
Output current
360V
152~456VAC
20KW
360VDC
200-500VDC/0-54A
540V
152~456VAC
20KW
540VDC
350-720VDC/0-36A
700V
152~456VAC
20KW
700VDC
400-850VDC/0-24A
input
Rated AC input voltage
three-phase AC input 380VAC 20kW
Effectiveness
94%
Frequency
45-65Hz
Power Factor
0.99
Main output
Output Power
20kW@380VAC
Output Voltage / Current
200V ~500V / 0~54A
350V ~720V / 0~36A
400V ~800V / 0~24A
Constant pressure accuracy
±1%
Constant current accuracy
±2%
Ripple voltage coefficient
5%
Communication function
CANcommunication
yes
Baud rate
125Kbps,250Kbps,500Kbps(According to customer needs)
Terminating resistor
no
The parameters of 6.6KW OBC with 1500W DCDC converter
Model
Voltage
Charger
Hardware
DC-DC
Hardware
DC-DC power
cooling method
CD-LW01
144V
HK-LW-202-46
TDC-JH-144- 12
1K5W
Liquid Cooling
CD-LW02
312V
HK-LW-450-20
TDC-JH-320- 12
1K5W
Liquid Cooling
CD-LW03
540V
HK-LW-680-14
TDC-JH-540- 12
1K5W
Liquid Cooling
CD-LW04
108V
HK-LW-177-60
TDC-JH-108- 12
1K5W
Liquid Cooling
CD-LW05
216V
HK-LW-290-28
TDC-JH-216- 12
1K5W
Liquid Cooling
CD-LF01
144V
HK-LF-202-46
TDC-JH-144- 12
1K5W
Air Cooling
CD-LF02
312V
HK-LF-450-20
TDC-JH-320- 12
1K5W
Air Cooling
CD-LF03
540V
HK-LF-680-14
TDC-JH-540- 12
1K5W
Air Cooling
CD-LF04
108V
HK-LF-177-60
TDC-JH-108- 12
1K5W
Air Cooling
CD-LF05
216V
HK-LW-290-28
TDC-JH-216- 12
1K5W
Liquid Cooling
Voltage platform
108V
144V
216V
312V
540V
output
Output voltage range
45~177V
50~202V
70~290V
110~450V
170~680V
Output current
60A
46A
28A
20A
14A
output
Output power
6600W@220VAC 3300W@110VAC
Output mode
constant voltage / constant current
Constant voltage accuracy
± 1%
Constant current accuracy
±2%
Ripple voltage coefficient
5%
Input
Input voltage range
AC 90~265V
Frequency
45-65Hz
Input current
32A
Power factor
≥ 0.99 More than half a load
Efficiency
≥ 93% the full load
Standby power
≤ 5W
Low voltage output
Output mode
constant voltage
Output voltage
13.8V
Rated current
5A
Constant voltage accuracy
±2%
output power
≥ 62.5W
Ripple voltage coefficient
1%
On Board Charger for Lithium Battery 48V 300V 500V 10kW 20kW High Voltage EV Charging OBC

╣Company Profile
╣Company Profile
Hunan CTS established in 2011, which is a manufacturer specializing in the R & D, production, sales and service of lithium battery packs, focusing on one-stop customized lithium battery products, such as electric vehicle batteries, electric truck batteries, electric boat batteries, golf cart batteries, energy storage battery system,EV charger and mobile charging station... With 30 people R& D team who has rich experience, CTS focuses on power battery customization for middle and high end markets by selecting first grade lithium cells with high energy density. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow I S O 9 0 0 1 and I A T F 16949 management system through the production of every detail, each battery must be strictly tested before its delivery. our battery products selling well in all cities and provinces around China, also exported to multiple countries around the world,such as ,America, Australia, Canada,Italy, U K, Germany, South Korea, Thailand, etc. our battery products approved MSDS, UN38.3, CE, IEC 62619 certifications...
