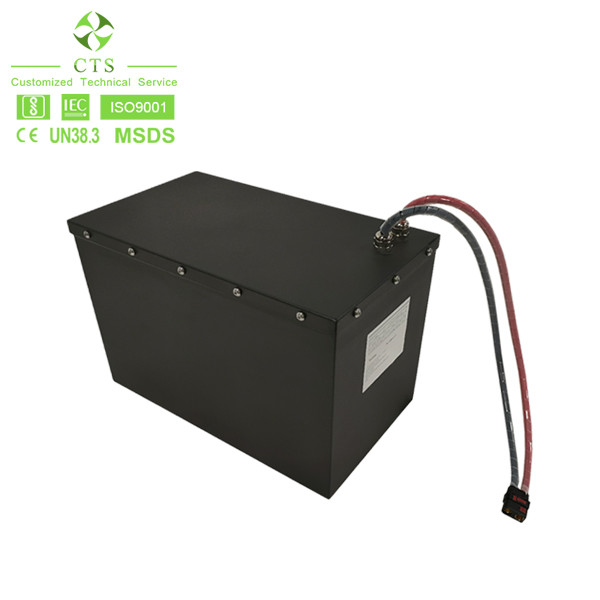

Customizable hot sell 72V 50Ah E-scooter LiFePO4 Battery Pack
Features:
1. Long Cycle Life, High Quality, High Power, High Performance;
2. 100% NEW A-grade Cells;
3. Small size and Light Weight;
4. No Explode, No Pollution!
5. Flexible size custom.
6. Factory Price.
Specifications:
| Model | CTS-7250 |
| ELECTRICAL SPECIFICATIONS |
| Cell Type - Chemistry | NMC 50Ah pouch cell |
| Rated Capacity | 50Ah |
| Rated Voltage | 72V |
| Energy | 3600Wh |
| Resistance | 10mΩ |
| Self Discharge | <1.5% per month |
| MECHANICAL SPECIFICATIONS |
| Dimensions (L x W x H) | L380*W225*H180mm |
| Weight | About 30Kg |
| Enclosure Protection | IP67 |
| DISCHARGE/CHARGE SPECIFICATIONS |
| Discharge Cut-off Voltage | 60V |
| Max Continuous Discharging Current | 50A |
| Peak Discharge Current | 80A for 3 seconds |
| Recommended Discharge Current | 50A |
| CHARGE SPECIFICATIONS |
| Charging Limited Voltage | 84V |
| Max Charging Current | 50A |
| Recommended Charge Current | 15A |
| TEMPERATURE SPECIFICATIONS |
| Charge Temperature Range | 0~45℃ |
| Discharge Temperature Range | -20~60℃ |
| Recommended Operating Temperature | 15~35℃ |
| Storage Temperature & Humidity Range (Less than 1 month) | -20~35℃, 45~75%RH |
| Storage Temperature & Humidity Range (Less than 3 months) | -10~35℃, 45~75%RH |
| Recommended Storage Temperature & Humidity Range | 15~35℃, 45~75%RH |
| OEM |
| Available on request |
Applications:
1. Electric Vehicles, such as E-bike, E-scooters.
2. Electric boats, such as trolling fishing boat.
3. Robots for industries and military.
4. Remote data transfer system.
5. Satellite communication station.
6. Un-manned aircrafts.
7. Power tools, such as drilling, cutting and polishing tools.
8. Power supplier for Training systems, such as Torpedo Trainer.

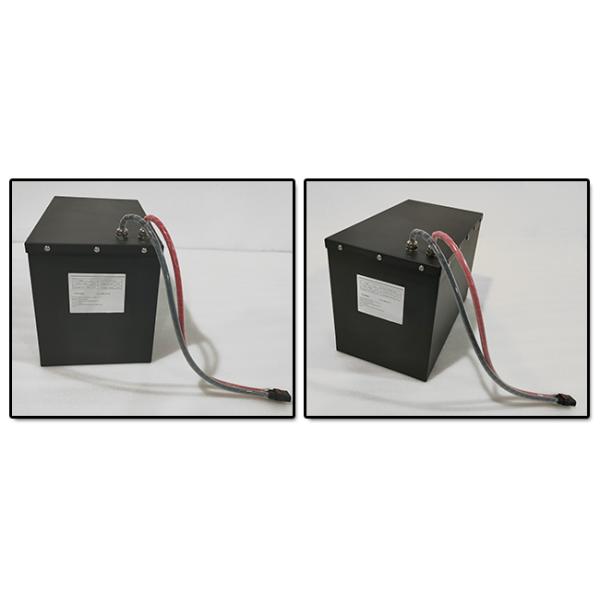

Pictures:
